F/A-18C MIP Five-Instrument Display Kit.

$179.00

In stock

A confirmed-fit 10.4-inch IPS display and controller kit for rendering the five round instruments in the lower-right cluster of the Dogfight Dynamics F/A-18C Main Instrument Panel.

Customer setup guide / DCS + HELIOS

Choose your setup path.

Both options run the same five instruments: four bound HELIOS gauges plus the separate DCS FA_18C_RWR viewport. Start with the profile for the quickest installation, or build the layout yourself for a custom monitor arrangement.

RecommendedFastest setup

Use the ready-made profile

The 1024 × 768 layout, five instrument positions, 15 bindings, RWR viewport, and required DCS interfaces are already included. Reset the two monitor canvases to your PC and complete the one-time DCS setup.

Download profile ZIP
Manual optionCustom layouts

Build the profile yourself

Use the illustrated guide to place each gauge, create the bindings, configure the RWR viewport, and generate the DCS monitor setup manually.

Open manual setup guide
Printer-friendly quick start View all assembly guides
Unsure about fitment? Send us your existing controls and cockpit plan before ordering. We will help confirm compatibility.
Shipping shown before payment: Flat-rate parcel shipping is $20 within the United States, $55 to Canada, $75 to Europe, $95 to East Asia, and $110 to Australia or New Zealand. Duties and import taxes, when applicable, are not included.
Product overview

Designed as part of the modular Dogfight Dynamics F/A-18C ecosystem for Digital Combat Simulator (DCS), with product-specific compatibility and mounting requirements documented below.

Build time & delivery

Parcel rates are displayed before payment: $20 United States, $55 Canada, $75 Europe, $95 East Asia, and $110 Australia or New Zealand. In-stock products dispatch after final inspection; incoming-batch products follow the production window shown above.

Assembly & support

Product-specific assembly guidance is included. Complete systems can be commissioned with white-glove on-site assembly and configuration.

Dimensions / Compatibility / Contents

F/A-18C MIP Five-Instrument Display Kit / Technical manifest

Everything needed to confirm space, fitment, freight requirements, and the hardware included with this component.

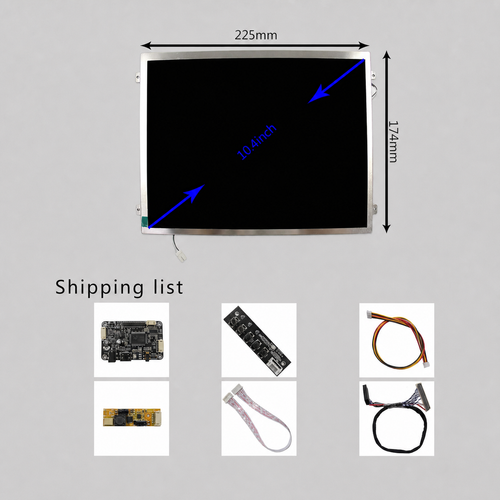

Dimensions225.8 × 174.3 × 5.6 mm8.89 × 6.86 × 0.22 in
Product weightApprox. 0.56 kg / 1.23 lbConfigured unit
Shipping weightConfirmed at fulfillmentPackaging included

Known fitment

Compatibility

  • Dogfight Dynamics F/A-18C Main Instrument Panel

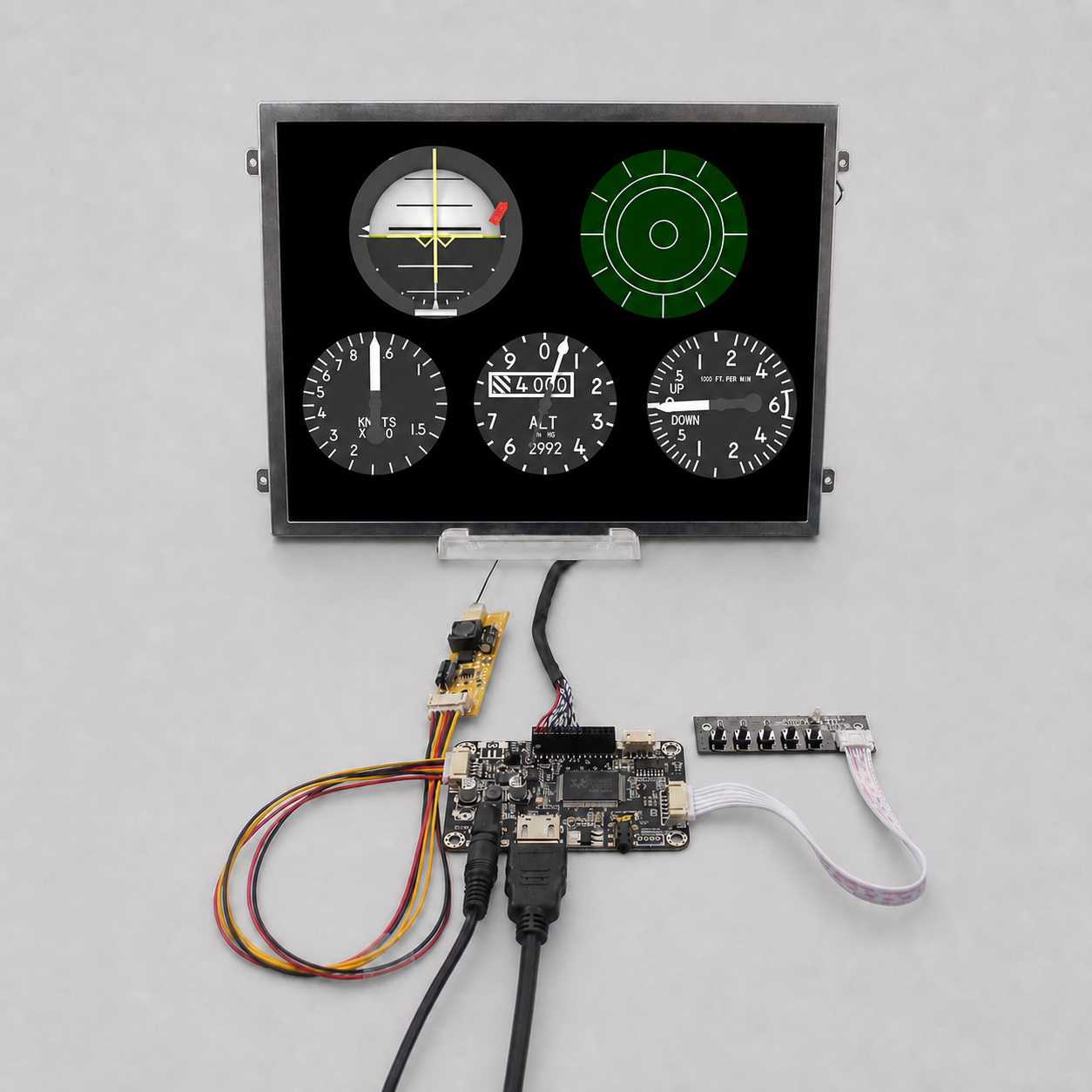

  • Lower-right five-instrument cluster: RWR azimuth, standby airspeed, standby attitude, standby altimeter, and standby vertical velocity
  • 1024 × 768 display output via the included controller board

Build manifest

In the box

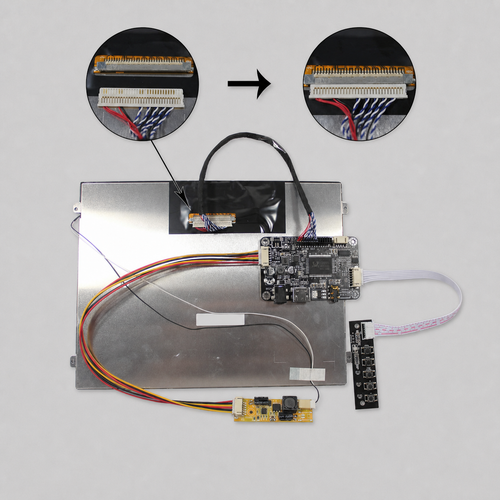

  • 10.4-inch VS104T-003A IPS LCD panel
  • HDMI audio LCD controller board

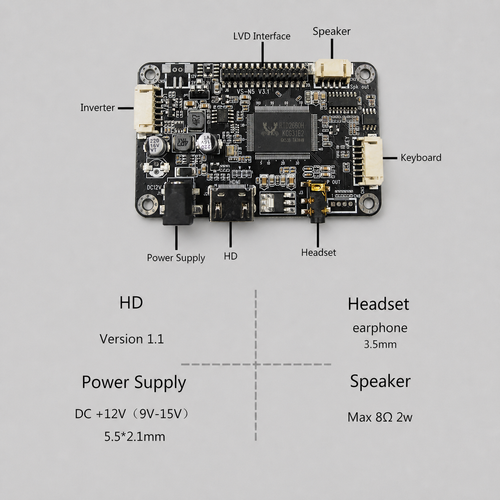

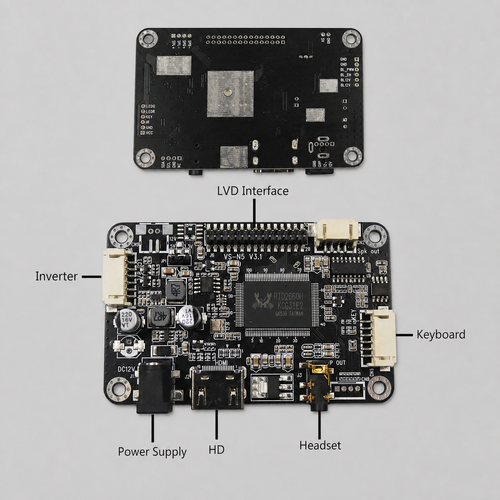

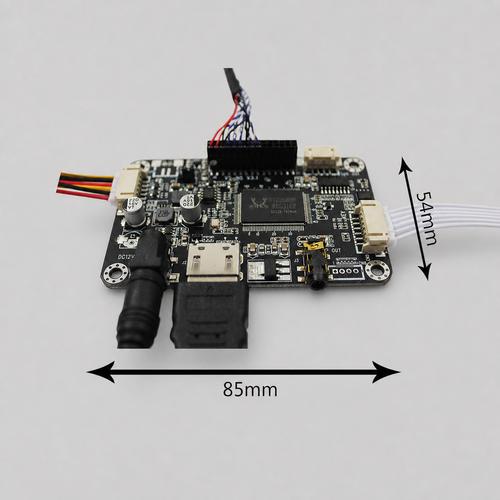

  • LVDS cable and inverter board
  • OSD keypad with cable
  • 12V / 2A-or-greater power adapter is required and not included
  • Instrument bezels, enclosures, HDMI cable, and Main Instrument Panel are not included
